RANGE 02 · LEDX
Phoenix 1Universal High-Performance Series
Made to order · exclusive import for the Czech Republic

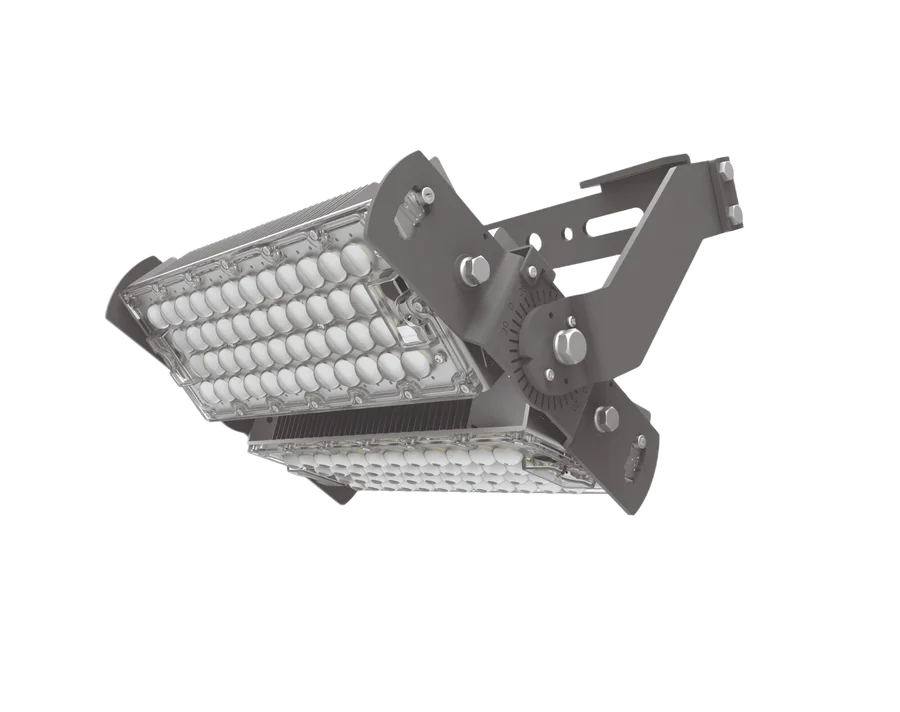

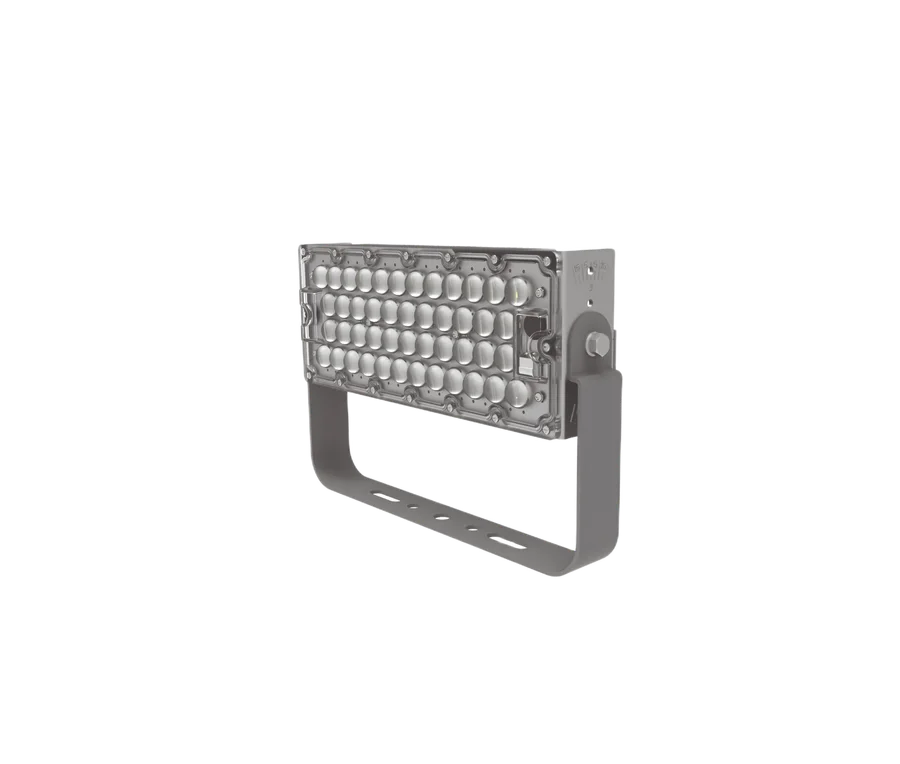

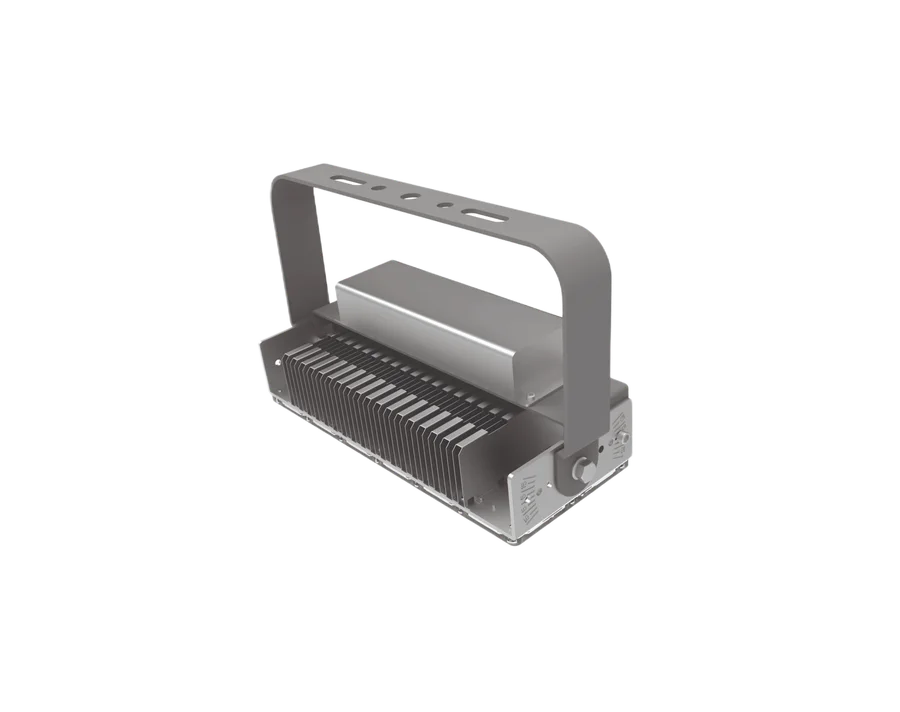

One lamp for five types of deployment — reflector, street, tunnel, pole and high-bay lighting. Modular construction (120W modules) with selectable angle for each module, CRI 85–95 and efficiency ~150 lm/W.
CRI 85–95IP65passive cooling−40 to +55 °C
Phoenix 1
Models and variants
Light color 3000 / 4000 / 5000 / 6500 K, angle 20 / 40 / 60 / 90° or asymmetric H140×V100. Higher power assemblies on request.
| Model | Power | Luminous flux | Dimensions (L×W×H) | Weight |
|---|---|---|---|---|
| Phoenix 1 · 120 W | 120 W | 18,500 lm | 278 × 191 × 230 mm | 3 kg |
| Phoenix 1 · 240 W | 240 W | 37,000 lm | 358 × 343 × 132 mm | 5 kg |
| Phoenix 1 · 360 W | 360 W | 55,500 lm | 358 × 476 × 132 mm | 7 kg |
| Phoenix 1 · 480 W | 480 W | 74,000 lm | 650 × 343 × 132 mm | 9 kg |
Common specifications
Color temperature
3000–6500 K
Beam angle
20–90° / H140×V100
Color rendering
CRI 85–95
Efficiency
~150 lm/W
Protection / class
IP65 · I · IK08
Cooling
passive
Operating temperature
−40 to +55 °C
Material
aluminum · PMMA · stainless steel
Dimming
0–10V / DALI / Zigbee
Energy class
C
Lifetime
L80/B10 · 50,000 h
Certificates
CE · RoHS
One lamp, five applications
Reflector (flood)StreetTunnelPoleHigh-bayPrimate exhibitionTropical pavilion
Non-binding inquiry
Inquire about Phoenix 1
Luminaires are supplied to order — choose a configuration and we'll prepare a tailored quote. We'll get back to you within 2 business days.
